HLP-SP110 Fan & Pump Drive

HLP-SP110 is a low-load product for fan, pump and HVAC; It fits low-load market with correlative craft of fan and pump;

Applications：

Fan, pump and HVAC

Specification
Characteristic

High Reliability

High Environmental Adaptability

  • Long life design
  • Complete self-monitoring and alarm functions ensure inverter operation of the high reliability and safety
  • Strict design and test production system

  • Independent wind way design
  • PCB board with 3C3 coating ensures a reliable drive protection in harsh conditions;
  • Automatic Energy Optimizer function, improve energy efficiency
  • Easy cleaning and replacement fan
  • ≥37kW models built-in DC reactor effectively suppress harmonic current disturbance
  • Wide voltage range
  • Built-in RFI in all power range
  • ≤ 22kW models supply IP50 protection options
Excellent User Friendliness

  • Easy operation
  • Receive a variety of peripheral feedback signals: resistance 0 ~ 400Ω, current 4-20mA/0-20mA and voltage 0-10V
  • Smaller size
  • Multiple installation mode


Excellent Control Performance



  • Supply multiple application macros to meet different requirements, including inner PID, PFC function etc

Tech. Specifications
Item  Specification
Power supply Supply voltage

  Three phase 380~480V -20%~+10%;
Frequency  48-62Hz;
Max. imbalance   3% ;
Motor output Output voltage   Three phase  0-100% of supply voltage
Output frequency

 V/F : 0-400Hz , VVC+: 0-200Hz;

Basic IO

terminals





   		  Input

5 digital inputs ;

2 analogue input, both can receive voltage or current signals. For AI terminal  current or resistance  signals can be selected via jumper switch;
 Output

2 relay output;

2 analogue output (VO terminal can be selected as current output or voltage output; AO terminal only  can be selected as current output; ).
 Power supply

1 +10V, max current output 10mA;

1 24V, max current output 200mA;
 Communication RS+, RS-, max baud rate 115200bit/s;

Extended IO

 terminals		  Input

5 digital inputs ;

2 analogue input, both can receive voltage or current signals. For AI terminal current  or resistance  signals can be selected via jumper switch;
 Output

6 relay output;

2 analogue output (VO terminal can be selected as current output or voltage output; AO terminal  only can be selected as current output; ).
Power supply

  1 +10V, max current output 10mA;

  1 24V, max current output 200mA;
Communication   RS+, RS-, max baud rate 115200bit/s;
 Display   8 segments, 5 numeric displays   Display frequency, warnings, status and so on;
 Indicator Light FWD, REV, HZ, A, RPM display various status of the drive;
 Data read-outs

 Frequency setting, output frequency, feedback value, output current, DC link voltage,output  voltage,output power, input terminals state, output terminals state,  analogue input ,analogue  output,1-10 fault records and accumulated working time etc.;
 Environment     Enclosure IP20;
 Ambient temperature  -10℃~50℃, derating use when over 40℃;
 Humidity  5%-85% (95% without condensation);
 Vibration test  ≤75kW: 1.14g;
 ≥90kW: 0.7g;
 Max. altitude above sea level  1000m, derating use when more than 1000 meters;
 Motor cable length  Shield cable: 50 meters; Unshield cable: 100 meters;
Others  DC choke  ≥37kW Built-in
Product Functions
Main control functions Control mode V/F, VVC+;
Start torque 0.5Hz 150%;
Overload capacity 110% 60s, 150% 1s;
PWM switch frequency 2k~16kHz ;
Speed setting resolution

Digital: 0.001Hz;

Analogy: 0.5‰ of the max. operating frequency ;

Speed open-loop control accuracy

 30~4000 rpm: tolerance±8 rpm;
Control command source LCP, digital terminal, local bus;
Frequency setting source LCP, analog, pulse, local bus;
Ramp control Selectable 4-speed steps ramp up and down times 0.05-3600.00s;
Basic Functions Speed Open-loop Control; Process Closed-loop Control; Torque Open-loop Control; AMA Function; Motor Magnetisation; Slip Compensation; Torque compensation; Automatic Voltage Regulation;  V/F Control, DC Brake; AC brake; Speed Limit; Current Limit; Flying Start; Reset Function; Counter; Timer;
Application Functions Sleep/Wake up ,Jogging;  Multi-speed  Control via Digital input; SLC(including Order Control and Parallel Control); Mechanical Braking; UP/DOWN ; Catch up /Slow down; Relative Scaling Reference etc.

Protection

Functions		 Missing Motor Phase Protection; Low-voltage Protection; Over-voltage Protection; Over-current Protection; Output Phase Loss Protection; Output Short Circuit Protection; Output Grounding Fault Protection; Motor Thermal Protection; Live Zero Timeout Function; AMA Fails; CPU Fault; EEPROM Faults; Button freeze; Duplicate Fails; LCP Invalid; LCP Incompatible; Parameter Read-only; Reference Out of Range; Invalid While Running etc.
Particular Specifications
Model   Input voltage

 Input current

(A)

Output current

(A)

 Rated power

(kW)

Suitable motor

 (kW)

 Net weight

(kg)

HLP-SP1100D7543

3×380-440V

 3.7 2.3 0.75  0.75 1.3
3×440-480V  3.2 2.1

HLP-SP11001D543

 3×380-440V   6.4 4.0  1.5   1.5   1.3
3×440-480V   5.5 3.6

HLP-SP11002D243

 3×380-440V
  8.9 5.6  2.2  2.2   1.3
3×440-480V   7.7 5.1

HLP-SP11004D043

 3×380-440V  15.8 9.9  4.0   4.0   2
3×440-480V   13.6 9.0

HLP-SP11005D543

 3×380-440V
  21.3 13.3  5.5   5.5  2
3×440-480V  18.4  12.1

HLP-SP11007D543

 3×380-440V
  28.3 17.7  7.5   7.5   2.5
3×440-480V  24.4  16.1

HLP-SP110001143

 3×380-440V
 35.9  25  11   11   5.8
3×440-480V  31.4 22.7

HLP-SP110001543

 3×380-440V  43.4  32  15   15   5.8
3×440-480V  38.8 29.1

HLP-SP11018D543

 3×380-440V
 51.5  38  18.5   18.5   8
3×440-480V  46.1  34.5

HLP-SP110002243

 3×380-440V
 61.0  45  22   22   8
3×440-480V
 54.5  40.9

HLP-SP110003043

 3×380-440V 73  61  30   30   19
3×440-480V  64  52
 HLP-SP110003743  3×380-440V
 72  75  37   37   22
3×440-480V  65  68

HLP-SP110004543

 3×380-440V
 86 91  45   45   23
3×440-480V  80  82

HLP-SP110005543

 3×380-440V
 110  112  55   55   26
3×440-480V  108  110
HLP-SP110007543
 3×380-440V  148  150  75   75   28
3×440-480V  135  140
HLP-SP110009043
 3×380-440V
 175 180  90   90   37
3×440-480V
 154 160
HLP-SP110011043
 3×380-440V
 206  215  110   110   60
3×440-480V
 183  190

HLP-SP110013243

 3×380-440V  251  260  132   132   60
3×440-480V  231  240

HLP-SP110016043

 3×380-440V
 304  315  160   160   60
3×440-480V
 291 302

HLP-SP110018543

 3×380-440V  350 365  185   185   99
3×440-480V
 320  335

HLP-SP110020043

 3×380-440V  381  395  200   200   99
3×440-480V  348 361

HLP-SP110022043

 3×380-440V
 420  435  220   220   99
3×440-480V  383 398

HLP-SP110025043

 3×380-440V
 472  480  250   250   99
3×440-480V
 436  443

HLP-SP110028043

 3×380-440V
 525 540  280   280   250
3×440-480V  475  490

HLP-SP110031543

 3×380-440V  590 605  315   315   250
3×440-480V
 531 540

HLP-SP110035543

 3×380-440V 647 660 335 335 250
3×440-480V 580 590

HLP-SP110041543

 3×380-440V 718 745 415 415 250
3×440-480V 653 678



HLP-SP110045043



 3×380-440V 771 800 450 450 250
3×440-480V 704 730

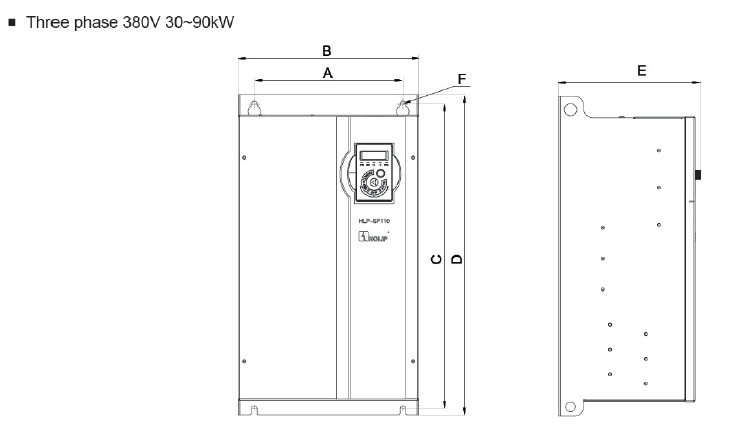

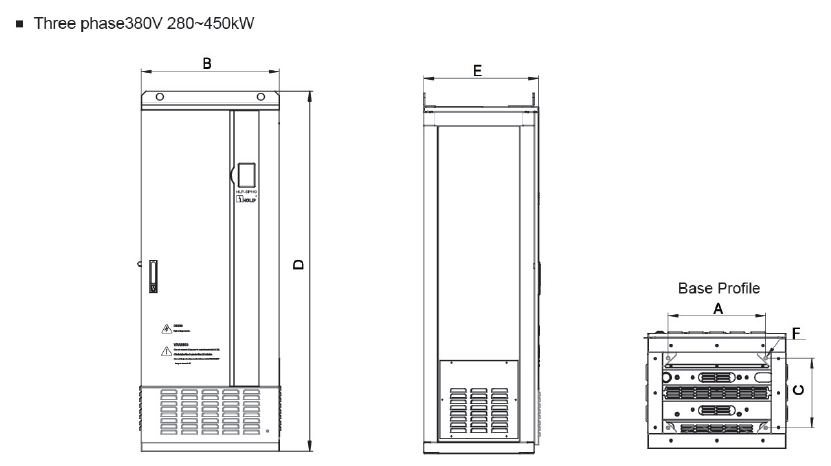

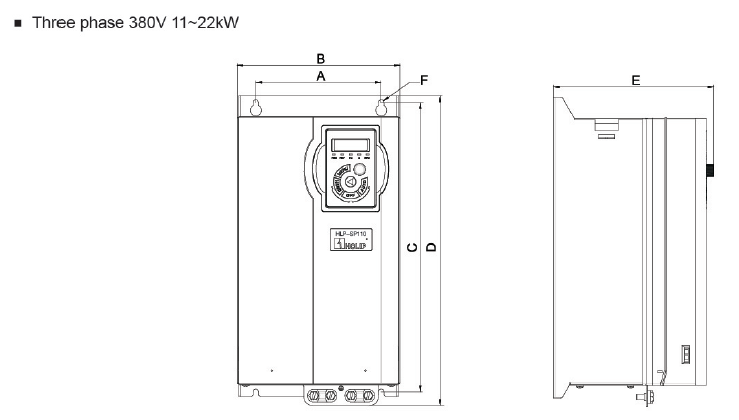

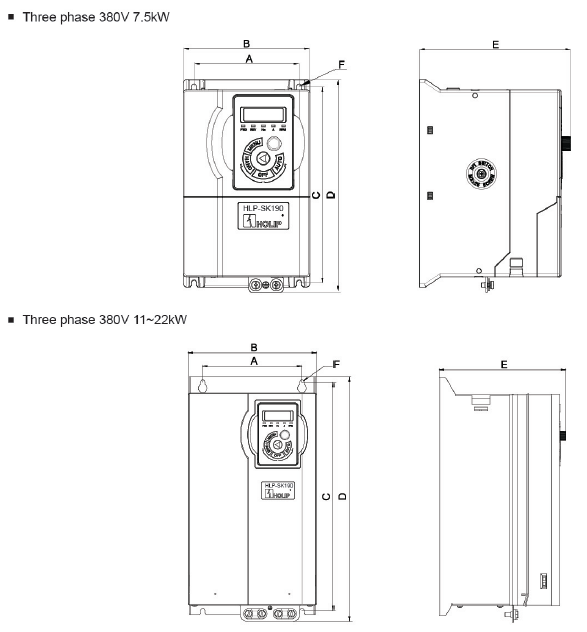

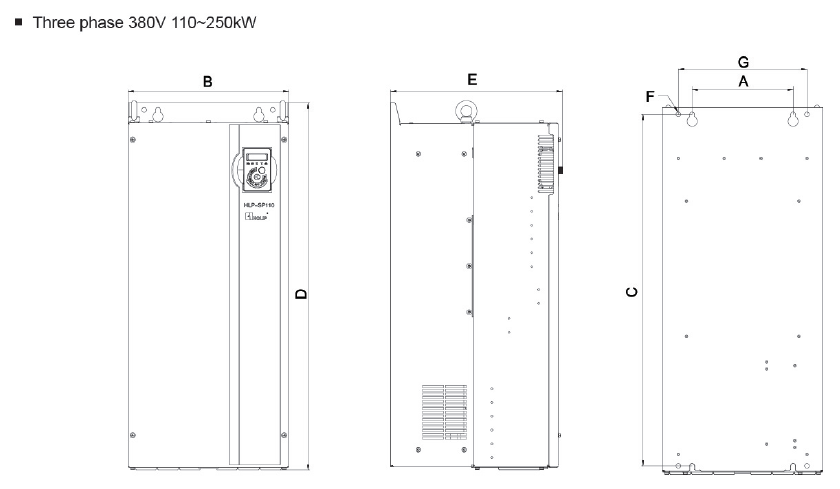

Installation Dimensions



Voltage & PowerDimensions（mm）
3x380-480V A B C D E F G
0.75-22 104 125 194 210 150 4.5 -
3.7-5.5 124 145 230 250 165 4.5 -
 7.5 133 155 243 263 175 4.5 -
11-15 148 192 340 365 189 6.5 -
18.5-22 150 214 395 420 194 6.5 -
30-45 240 292 492 517 229 9 -
55-75 240 292 537 562 249 9 -
90 240 292 640 665 277 9 -
110-160  220 350  765  799  375 10.5 280
185-250 345 486 863 900 390 10.5 410
280-450 424 600 304 1560 500 15 -
